Solar water pumping kit 1200 l/h
SOLAR SUPERFLOW 1200 L/h high-performance solar pumping kit ready for use! This Solar pumping station can supply a water tank or troughs by pumping up to 3500 liters (925 USG) a day in optimal conditions.
A SOLAR-FLOW™ “Solar-Powered” pumping station does not store the energy. Therefore, you should provide for a water reserve of sufficient capacity in order to cover several very cloudy days in a row.
A storage tank is better than troughs as a means of storage. It shields the water from light and you will not find any drowning animals in it. This prevents algae growth and water contamination.
Depending on the immersion depth, a SOLAR-FLOW™ “Solar- Powered” can pump up 160 to 360 liters per hour. Equip the tank with an overflow system to direct the excess water back to its source.

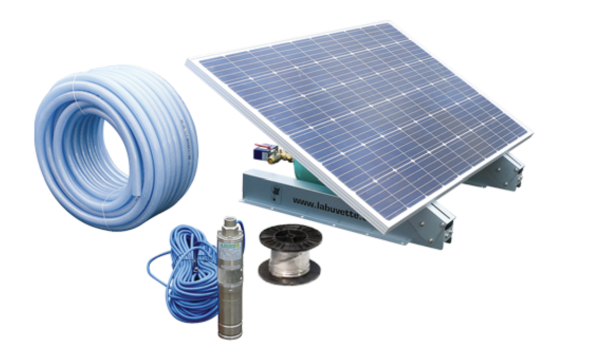

- 24 V kit including :
1 monocrystalline 305 W photovoltaic panel (166×100 cm) pre-assembled on a galvanized steel support and pre-wired to the controller, - 1 all-stainless steel 1200 L/h submersible pump (delivers up to 50 m vertically
- Submersible up to 20 m below the surface),
- 1 integrated MPPT solar regulator,
- 1 bladder tank with adjustable pressure switch to maintain the water level in several tanks. Pressure gauge and 1″ (26×34 mm) M threaded brass outlet connection supplied,
- 1 well-bottom sensor to protect the pump from damage caused by dry running,
- 50 m reinforced PVC hose Øint. 25 mm,
- 1 switch to simply deactivate or activate the system.
Designed for quick and easy installation:
All the elements needed for pumping are supplied!
• A 305 W 166×100 cm monocrystalline photovoltaic panel is delivered pre-assembled on a galvanized steel support and pre-wired to the regulator.
• A 100% stainless steel 1200 L/h submersible pump is supplied with 50 m of electric cable; it pumps water up to 50 meters vertically and can be submerged up to 20 m below the surface.
• A downhole detector protects the pump against damage caused by dry running.
• An integrated MPPT solar controller secures the pump’s power supply and optimises its efficiency.
• A bladder reservoir with adjustable pressure switch makes it possible to maintain the water level in several tanks or cisterns. A 1″ (26×34 mm) M threaded connection makes it easy to connect to various watering points or cisterns.• 50 metres of PVC reinforced pipe Øint. 25 mm are included.
The SOLAR SUPERFLOW water pumping kit
KIT is 100% autonomous to the pressure switch that controls the pumping. Vats and tanks must therefore be fitted with valves operating at standard pressure (2-5 bar). It works without a battery, so it’s advisable to have a water reserve with enough capacity to cope with several days of heavy rainfall.
SOLAR SUPERFLOW is 100% self-sufficient.
Pumping is controlled by the pressure switch. The user’s tanks must therefore be fitted with valves operating at standard pressure (2 to 5 bar). The kit is fitted with a main switch.
SOLAR SUPERFLOW works without a battery.
We therefore recommend that you have a water reserve with sufficient capacity for your livestock to cope with several very overcast days. Your KUTRE Kenya Agri representative will be able to help you size this reserve.
