Milk Cooling tanks/ chillers
Range of horizontal and vertical milk cooling tanks for chilling (cooling and storing) fresh raw milk on dairy farms. All milk cooling tanks have been expertly designed. Horizontal Milk Cooling tanks designed for the storage and cooling of milk for high volume producers and processors maintaining milk quality in an intuitive way with a minimum of cost.
Horizontal cylindrical tanks, free standing, smooth inner sides, rounded angles, perfectly polished weld, adjustable feet for uneven floors. Direct expansion bottom designed to ensure total tank drainage.
Direct expansion (DX) is the simplest and most energy efficient way of cooling milk. This is because the evaporator forms the outer skin or jacket of the inner tank surrounding the milk; as such, there are fewer heat transfer processes

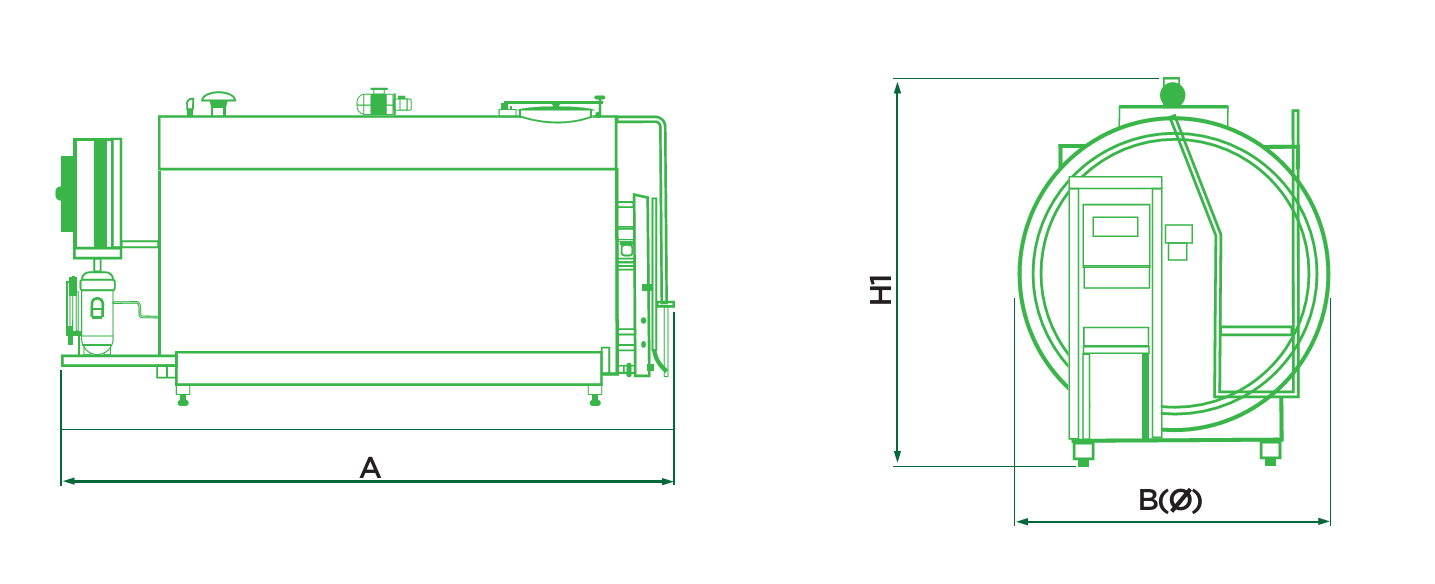

Horizontal Milk Chiller (Cooling tanks)
- The whole body of the tank be produced from AISI 304 quality stainless (CRNI) steel.
- The inner evaporator wall surface is 2 mm with 0.8 mm type LASER WELDED cooler coupled.
- The outer wall thickness of 1.5 mm.
- Cooling unit and tank on a separate on a monolithic chassis mounted.
- There will be a 28 rpm reducer and a stainless steel mixing blade in it.
- The insulation gap is 60 mm thick and HCFC-free water-based high-density isolated with polyurethane foam.
- Product outlets have DN 50 male fitting butterfly valves.
- Product inlet Ø 90 mm with spring cover.
- Manhole inlet is 100 Ø mm with Ø 200 mm cover.
- Designed for that zero liquid remains inside during discharge.
- Welded areas Argon TIG and 1st class smooth polished.
- Has adjustable foot bolts on the feet.
COOLING system
Providing rapid and frost-free cooling depending on the minimum amount of milk.
- Gas cooling R-404A good in between 35°C and 4°C,
- Gas charging capability at minimum level.
- Milk cooling duration is less than 3 hours at 32°C – 38°C ambient temperature.
- Milk Cooling Tanks keep milking at ambient temperature.
- Cooling without icing in minimum milk quantities.
- Cooling compressors are coupled to the chassis.
- All tanks have a scroll compressor.
- Suitable for any milking systems
ELECTRICAL Group
Horizontal milk cooling tanks operates with 380 Volt 50/60 Hz
- The electrical system has IP 65 protection class.
- Digital thermometer (Heat level indicator) Temperature indicator.
- Electronic control card makes it easy to operate the tank and control the milk temperature.
- Automatic mixing software controlling milk temperature in a set range and value;
- After the milk reaches the desired set value Mixer operating time can be adjusted at desired intervals. (10 minutes on, 5 minutes off)
- Control panel ergonomic touch screen, special design, user friendly.
- Phase protection relay.
AUTOMATIC WASHING CIP
Clean-in-place is an automated method of cleaning the interior surfaces of pipes, vessels, equipment, filters and associated fittings, without major disassembly. CIP is commonly used for equipment such as piping, tanks, and fillers. CIP employs turbulent flow through piping, and/or spray balls for tanks or vessels.
- One-button CIP automatic washing
- CIP System carried out mechanically to remove residues from the whole circuits.
- Low detergent consumption
- Easy to use detergent cabinet and dosing pump.
- Security system that prevents water from mixing with milk.
DIGITAL LEVEL INDICATOR
- Measurement accuracy of 0-2‰.
- The milk level monitored by control panel
- Displays are in kg and Liter.
OPTIONS:
- CIP Automatic Washing System
- Digital Weighbridge
- Milk Transfer Pump
- Milk Watch Meter
Others:
- Transportation & transportation insurance,
- Installation
- Electrical installation are excluded.
- Delivery time is 65 days after order confirmation.
- The warranty period is 2 years.
